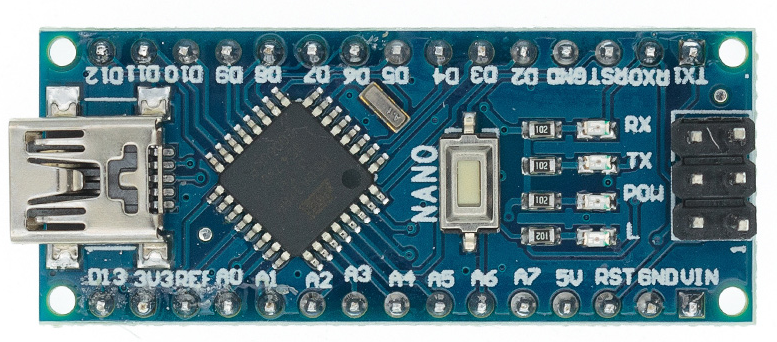

This is the Nano v3 compatible with Arduino. It contains the Atmel ATmega328P chipset.

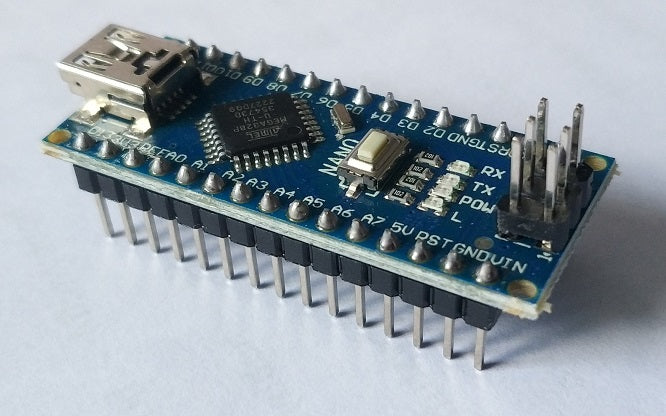

Comes complete with pre-soldered headers.
Operating voltage: 5v
Input voltage: 5-12v
Logic Level voltage: 5v
Clock speed: 16Mhz

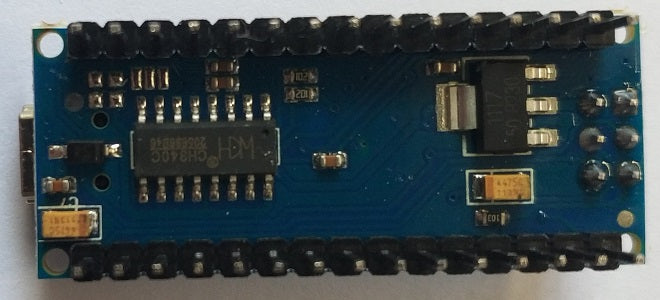

Driver: CH340G (replacing the older FT232RL)

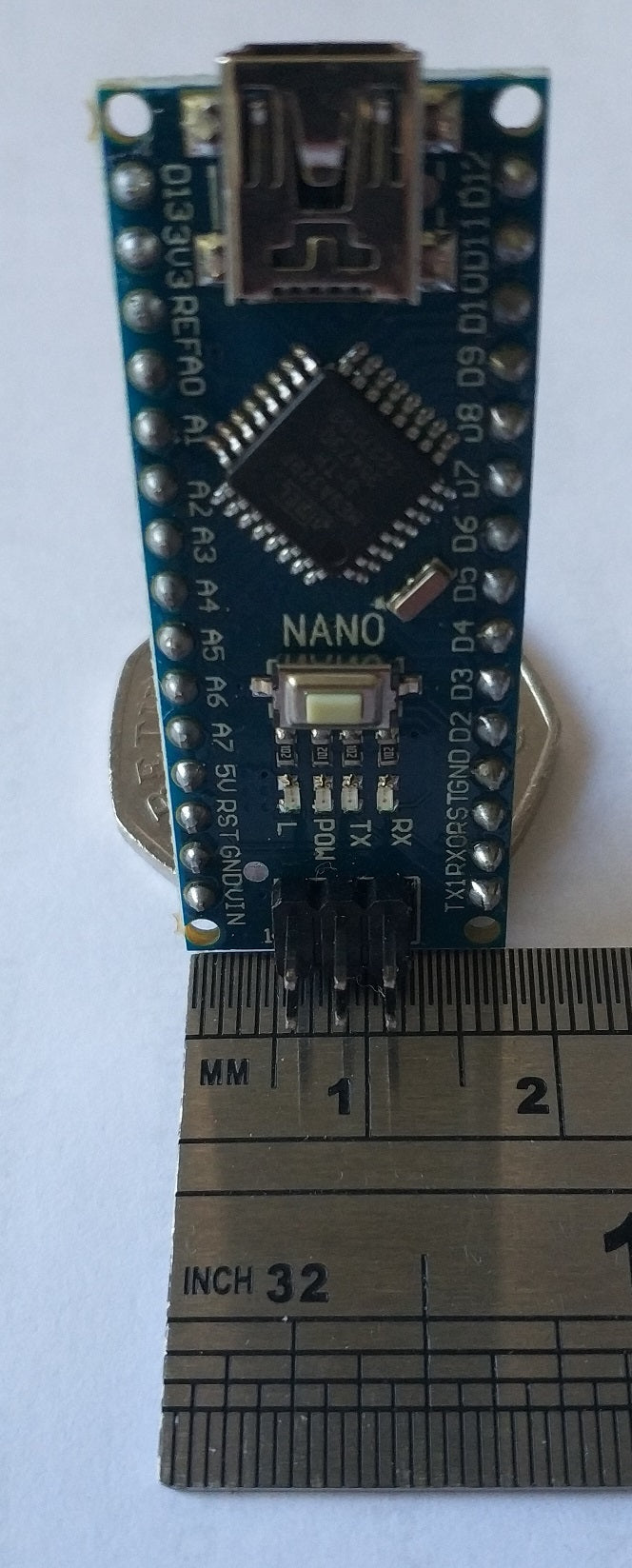

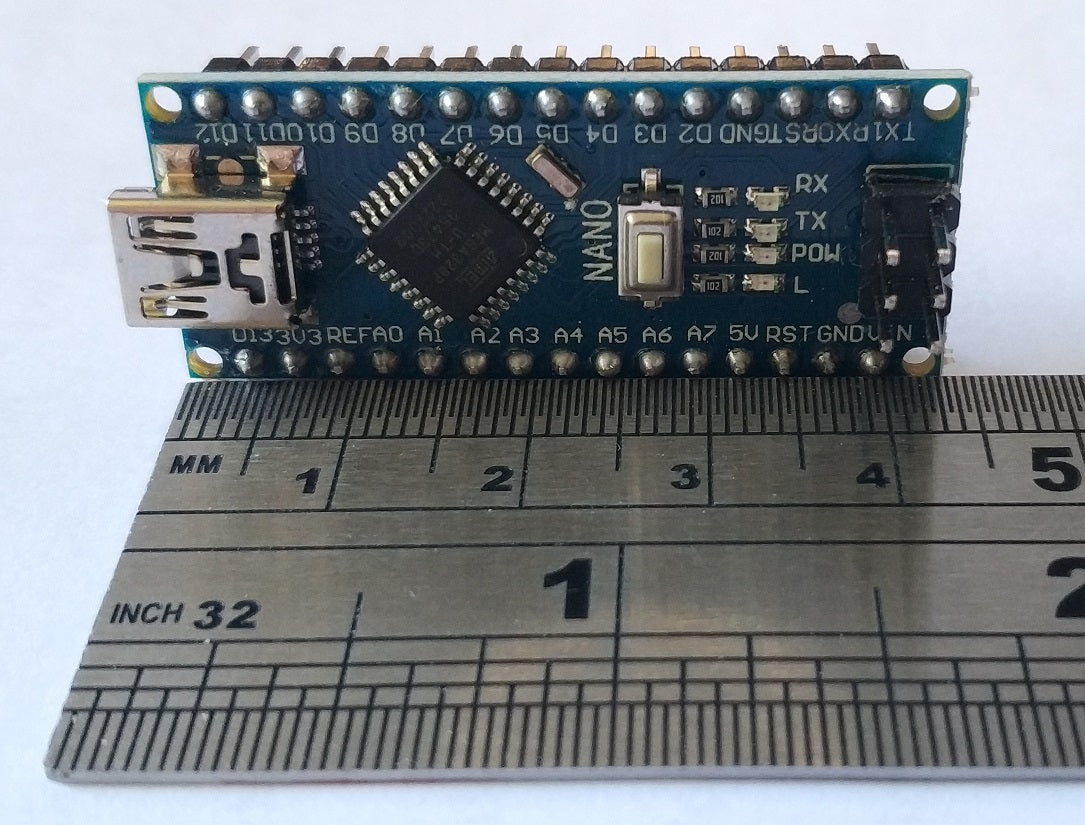

PCB board size*: 43.5mm x 18mm
Analog inputs: 8 (labelled A0 through A7)
Digital inputs: 16 (labelled D2 through D13, plus TX + RX)
PWN ports: 6 (D3, D5, D6, D9, D10, D11)
Bootloader: Installed
Power by USB: Supported
Port type: USB Mini
Supports power supply by a 9v battery (battery not included)
Supports ISP download

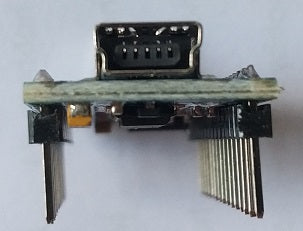

* Note that the USB port extends beyond the side of the board by an additional 1.5mm... so if you need the entire board to fit in a case, it will need to be 45mm,
