D1 Mini ESP32 with pins : WiFi / Bluetooth / Dual Core / ESP-32

D1 Mini ESP32 with pins : WiFi / Bluetooth / Dual Core / ESP-32

£6.95 GBP
£6.95 GBP
Sale Sold out
Option selected
Optional extra: an awesome black case!

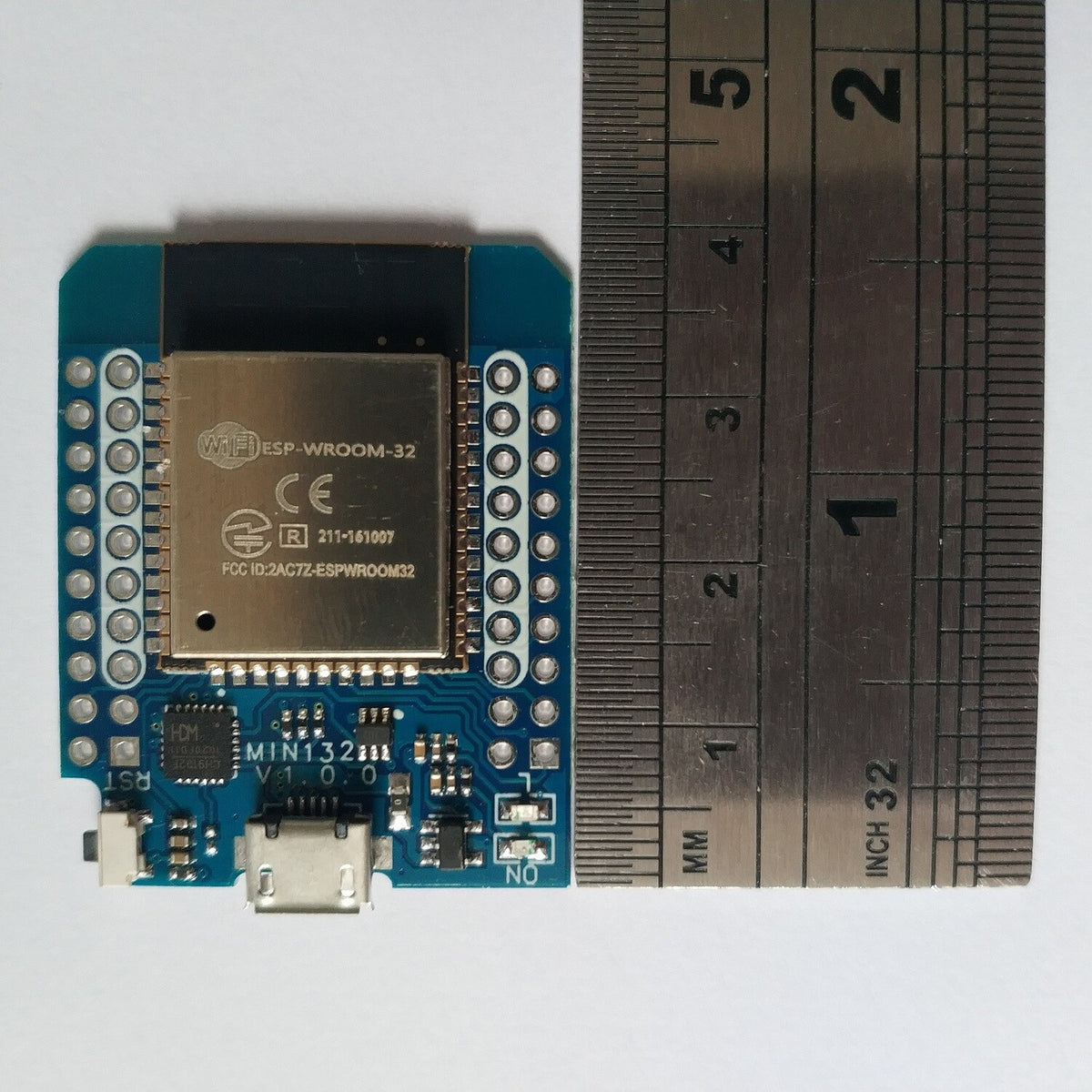

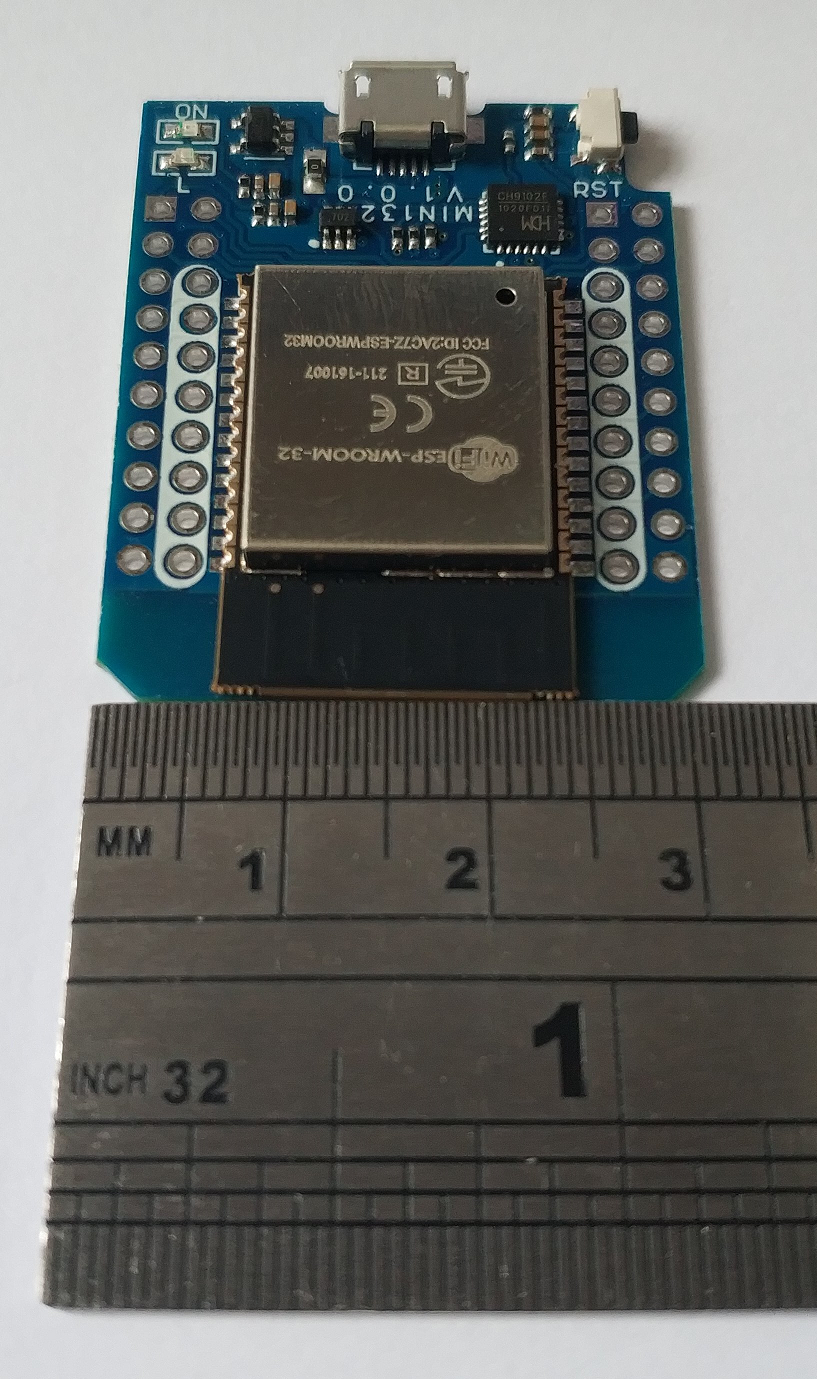

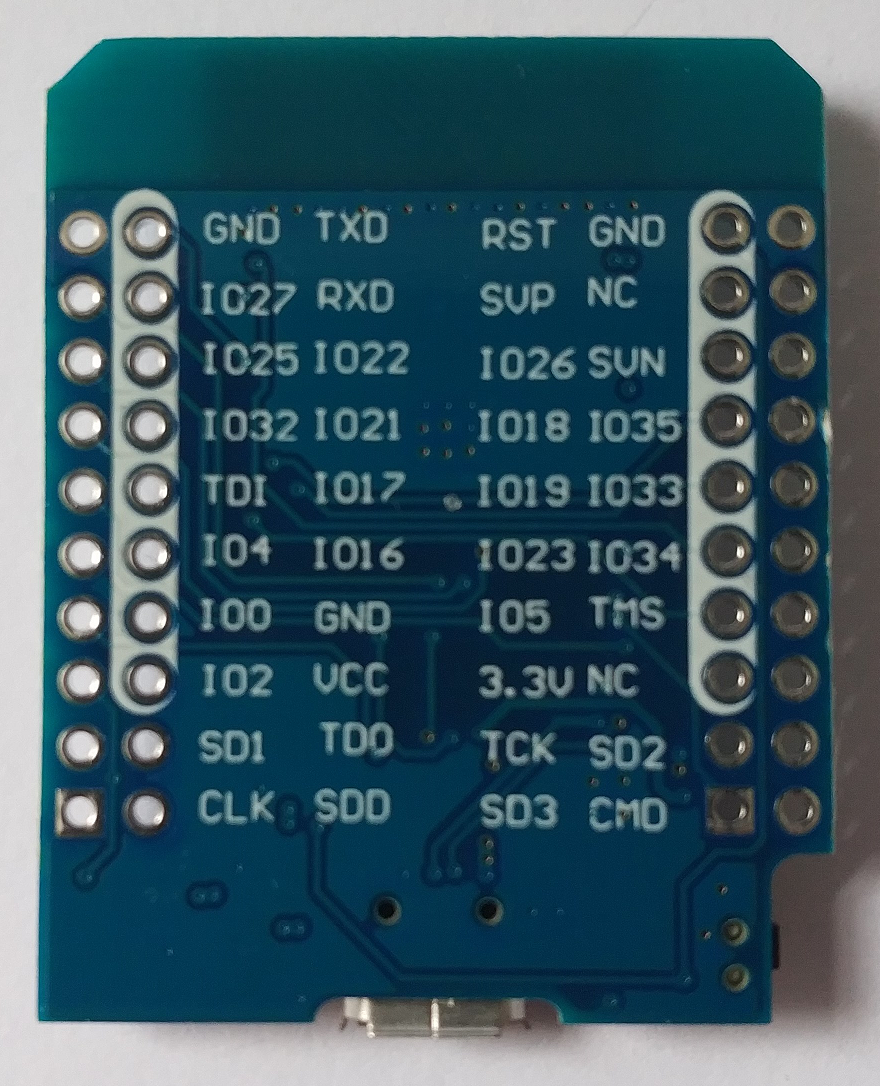

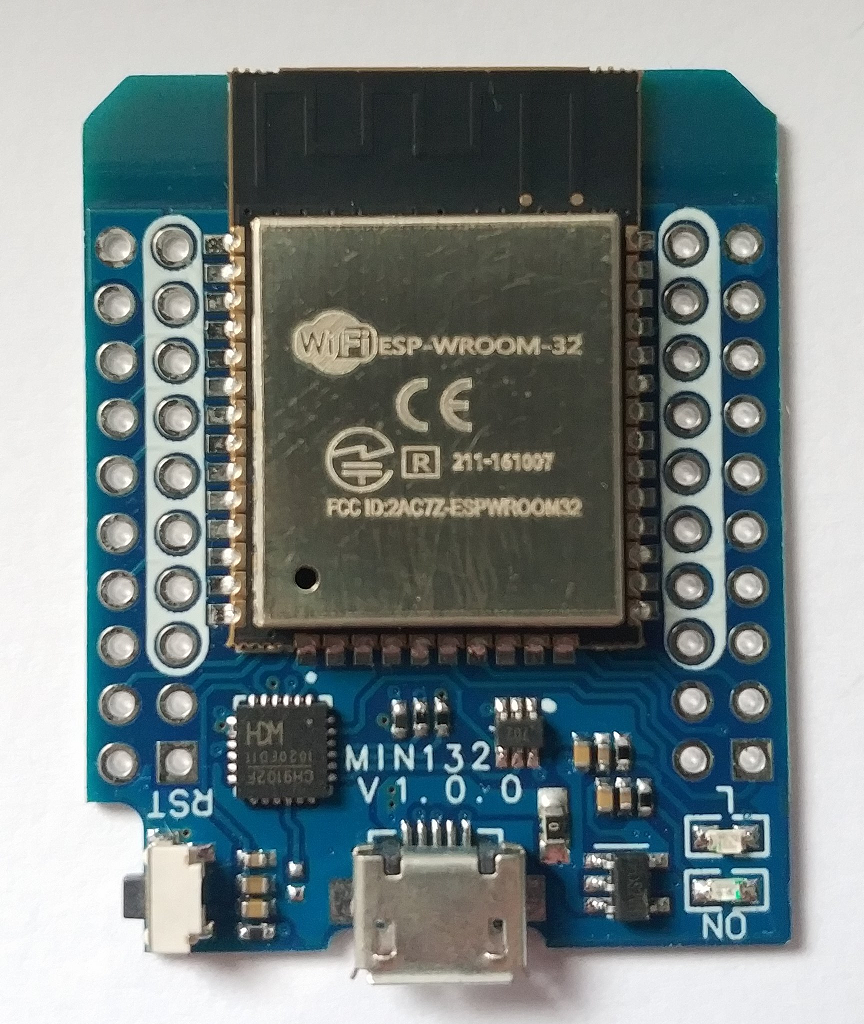

The brilliant ESP32 D1 Mini board! This is tiny (39x31mm), yet has a full-on dual-core ESP32-WROOM-32 chip onboard (not the less powerful ESP8266).

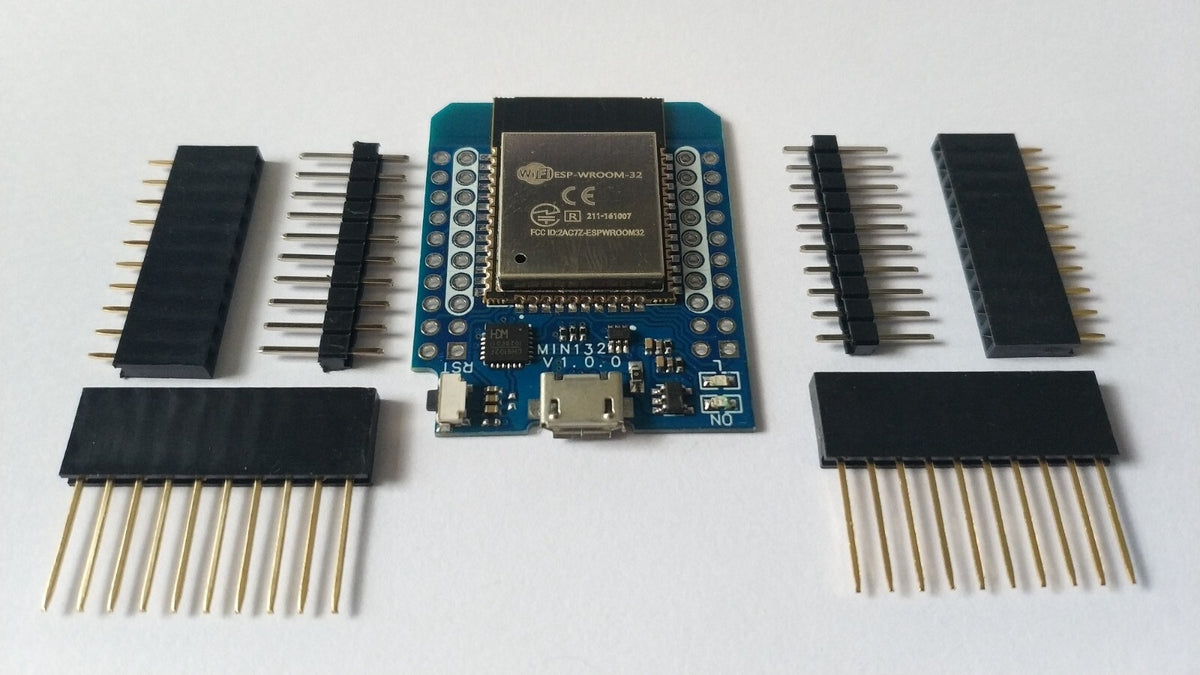

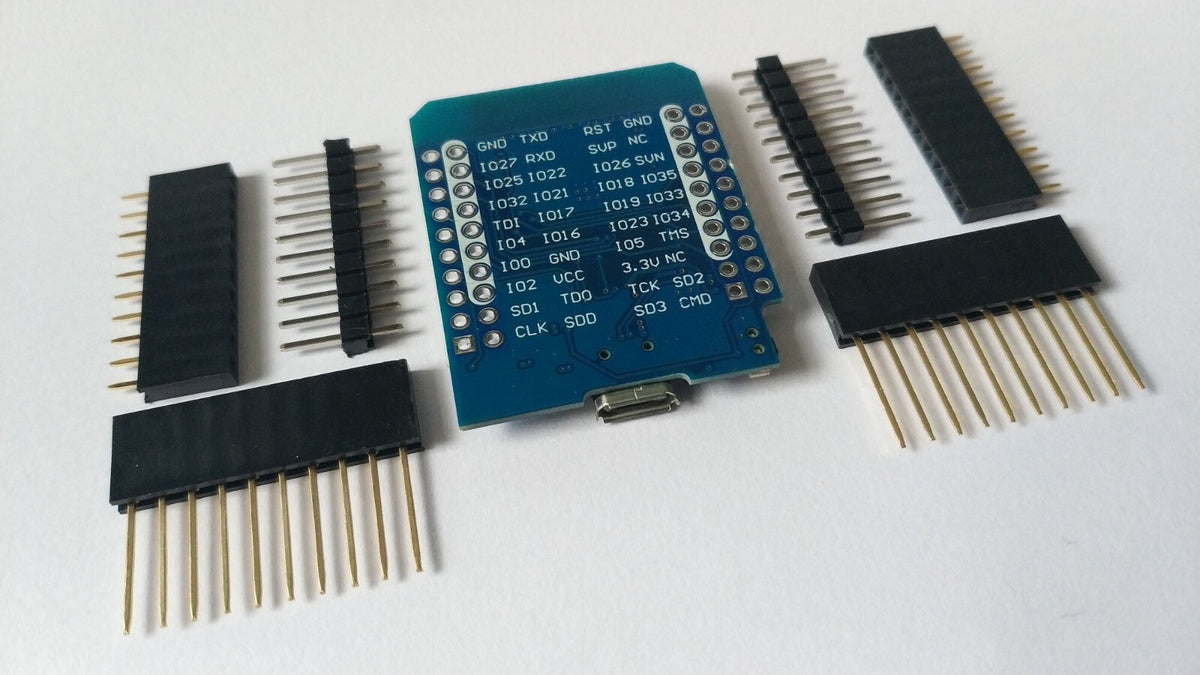

Comes with pins. Lots of pins:
  • 2x male (regular) Dupont pin strips.
  • 2x female (socket) Dupont strips.
  • 2x extra long Dupont strips with male and female sides.
These offer crazy amount of connectivity for a package so small and energy efficient. Bluetooth - got it. WiFi - got it. Dual core 32bit processor - you can bet it's got it!

And coding against them? No problem. Our preferred method is vscode via PlatformIO. Just select WEMOS D1 MINI ESP32 as your board in PlatformIO and off you go! In this way you can code against it as if it's an Arduino. There's also the Espressif IoT Development Framework in there as an option if you install the Espressif Platform. You can also use the Arduino IDE with it (see links below for a tutorial).

We use these on Windows 10 and Windows 11 PC's. When plugged in, it is detected as a USB-Enhanced SERIAL CH9102 COM port, and just works :).

Some info on the board:
  • Model: ESP32 D1 Mini
  • PC Connector: Micro USB (cable not included)
  • Bluetooth: v4.2, BR/EDR/BLE.
  • WiFi: 802.11 b/g/n (802.11n up to 150 Mpbs)
  • Antenna: on-board PCB antenna
  • Supply voltage: 3.0v ~ 3.6v (VCC) or 5v USB supplied.
  • Operating voltage: 3.3v (GPIO pins)
  • Interfaces: UART, SPI, I2C, LED PWM, Motor PWN, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC.

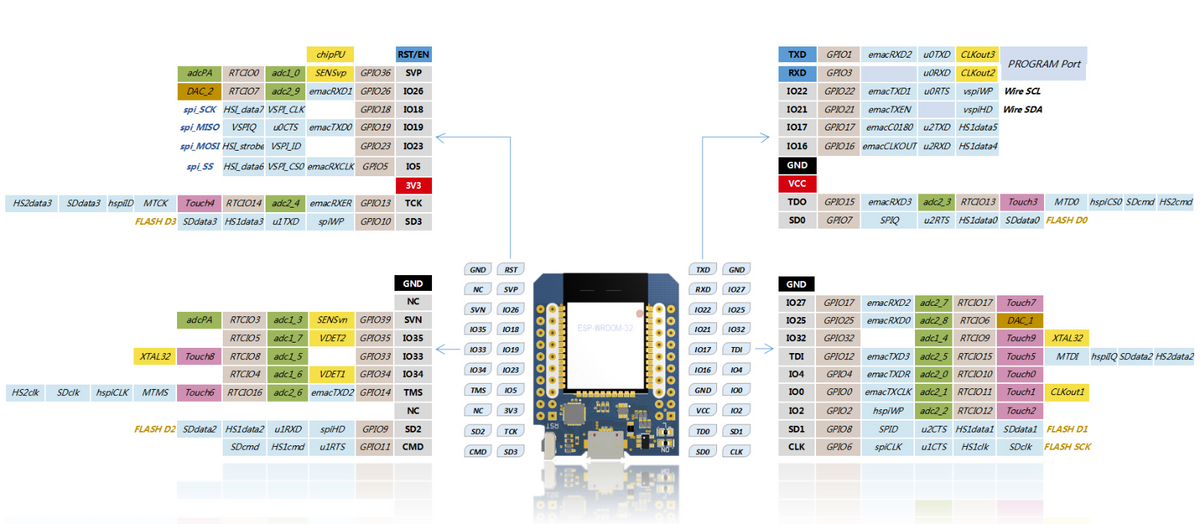

  • Pins available: 40
  • Operating Current: 20mA (idle), 100mA - 240mA (WiFi/Bluetooth), 10µA - 150µA (deep sleep), 5µA (RTC Timer Only)
  • Operating Temperatire: -40c to 85c.
  • Weight: ~5g (without pins)
Tutorials:
ESP32-WROOM-32 datasheet:

ESP32 General Datasheet:
Just for fun:
Tell me more about the case:

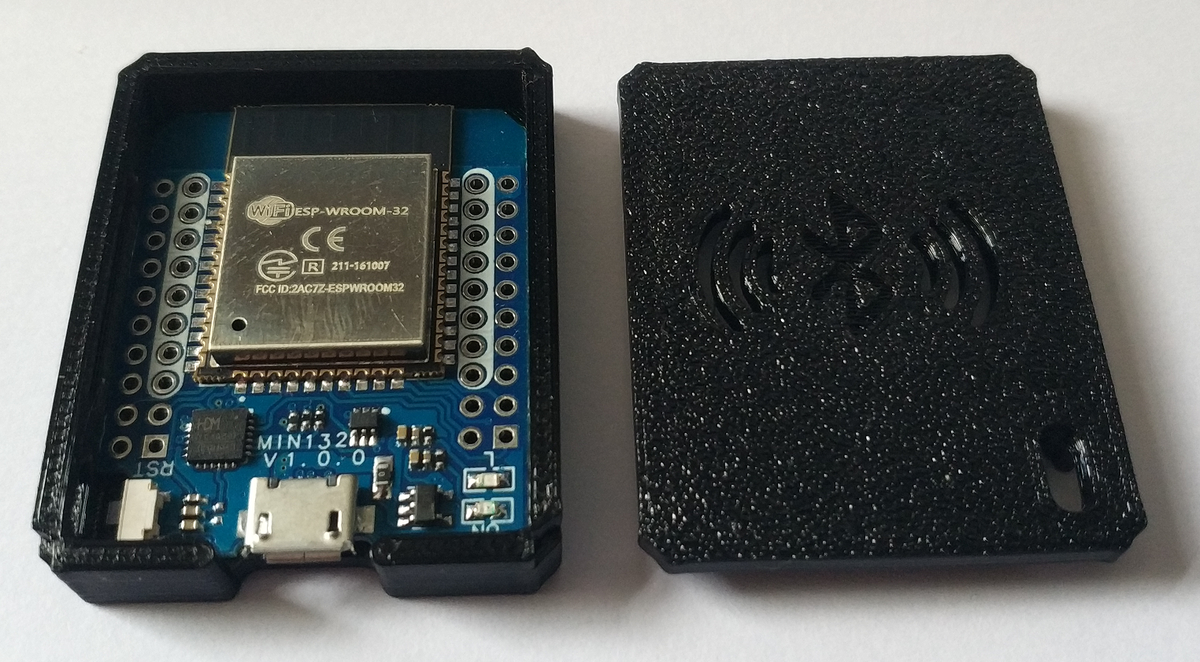

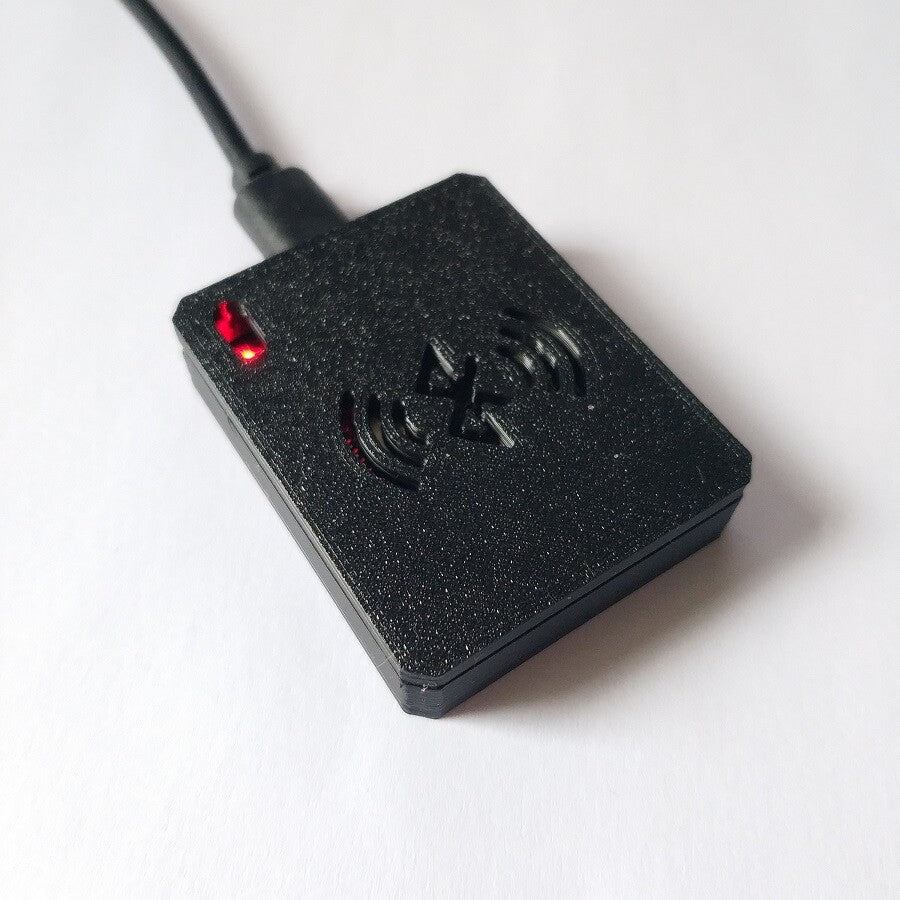

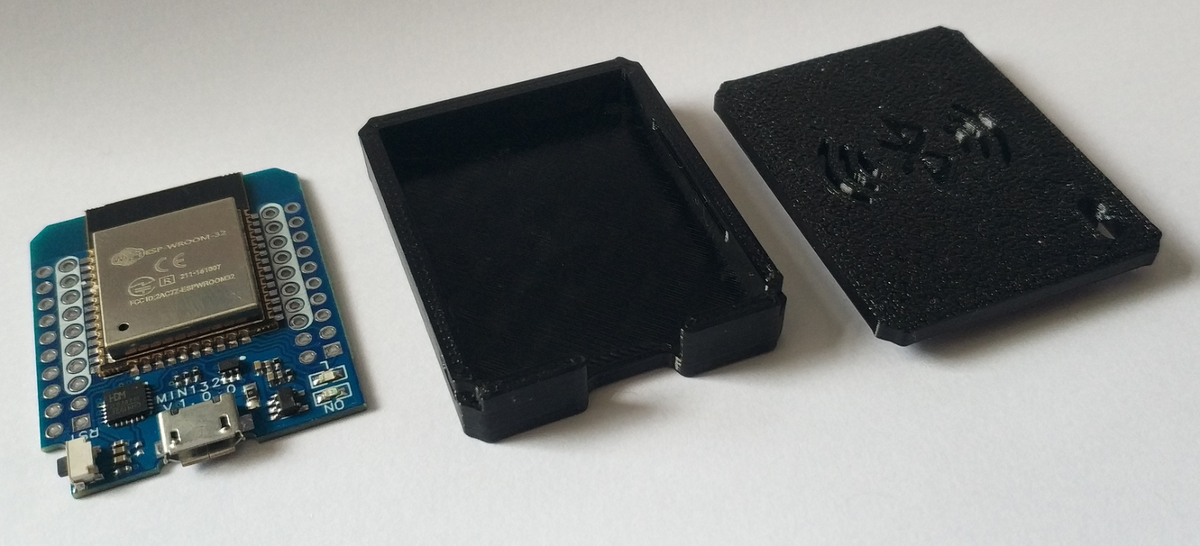

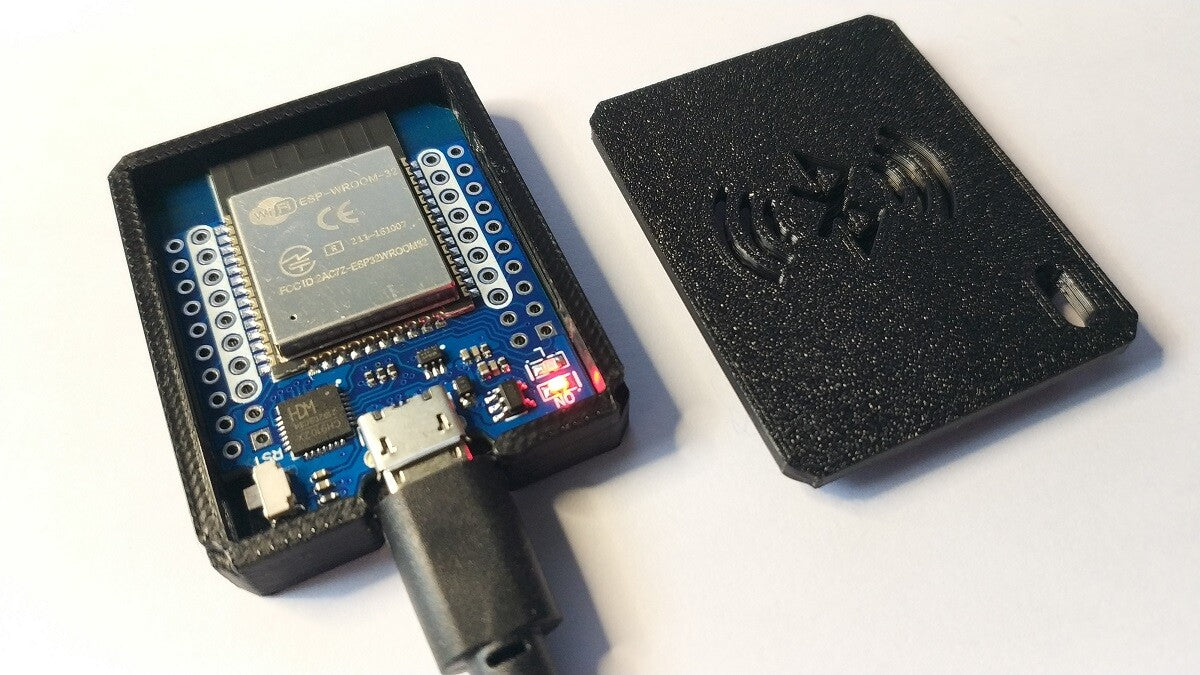

At Hobby Stuff, we love a good case, and this one is gorgeous! It is manufactured in PETG, with external measurements of 44.5 x 35.8 x 9.9 mm. It's a snug snap-fit with a couple of fingernail notches to pop it open once shut.

Hobby Stuff have redesigned the source file (linked below) to transform the wavey lines into vents so any heat can easily escape, which looks great! There is also an access hole beside the reset button. Our favorite part is the finish... it's almost sparkly and looks brilliant in our humble opinion! Note that the pins are not available directly through the base/top of the case.

We recommend inserting the ESP32 by USB port first. Also, when removing any snug-fitting SMD-soldered device such as the ESP32 D1 Mini, do not tug on any surface mounted components, as they can be delicate.

Attribution:
Hobby Stuff used this model as a start point for the case and reworked it to add vents:
