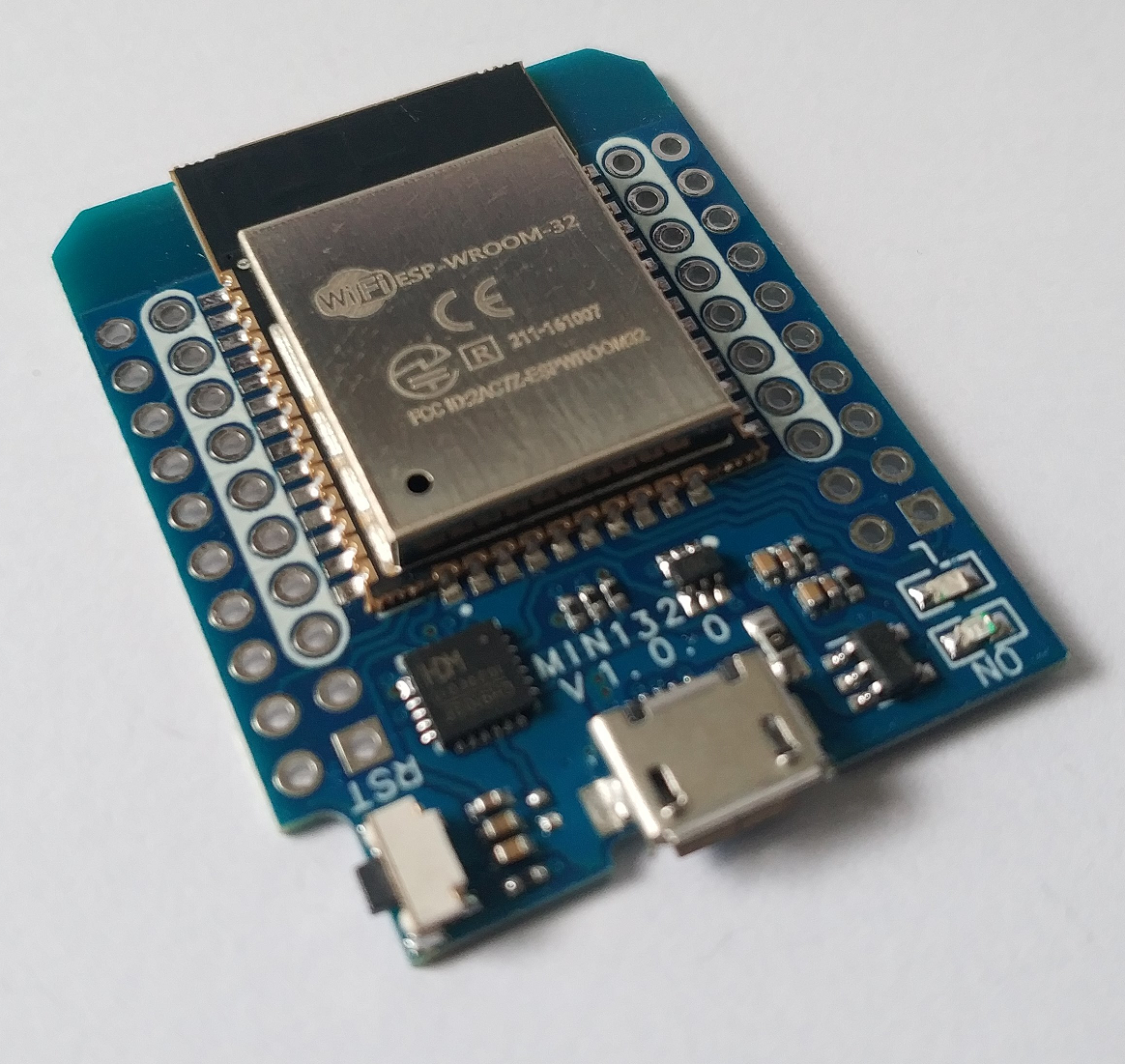

D1 Mini ESP32 with pins : CP2104 Driver / WiFi / Bluetooth / Dual Core / ESP-32

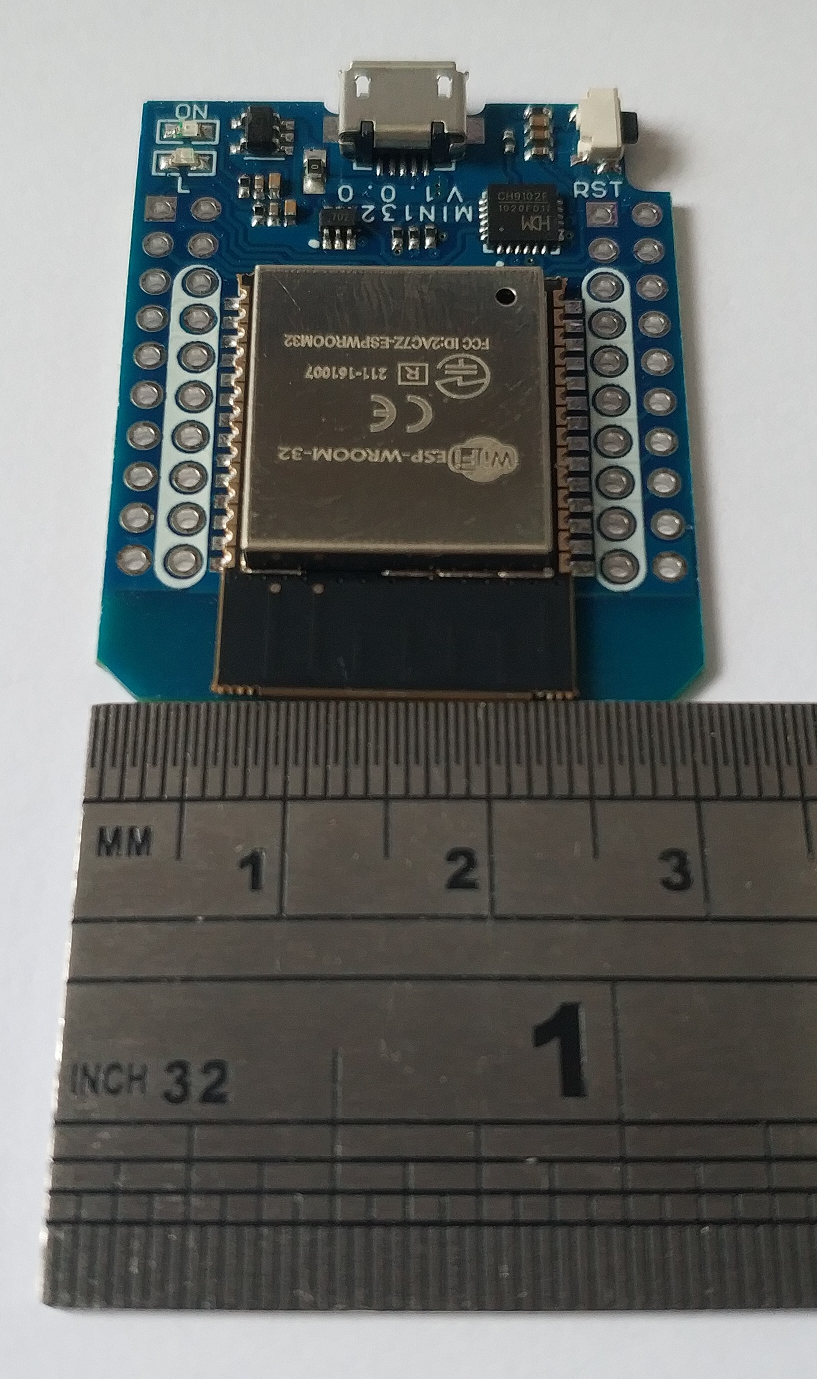

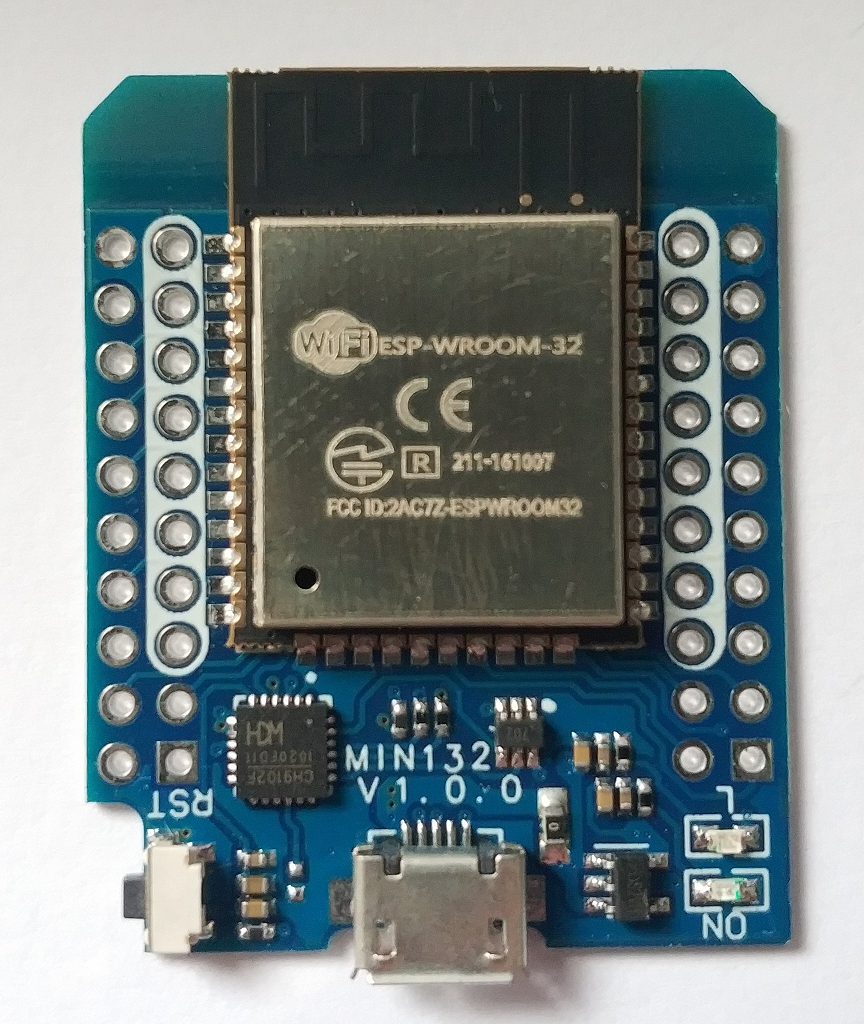

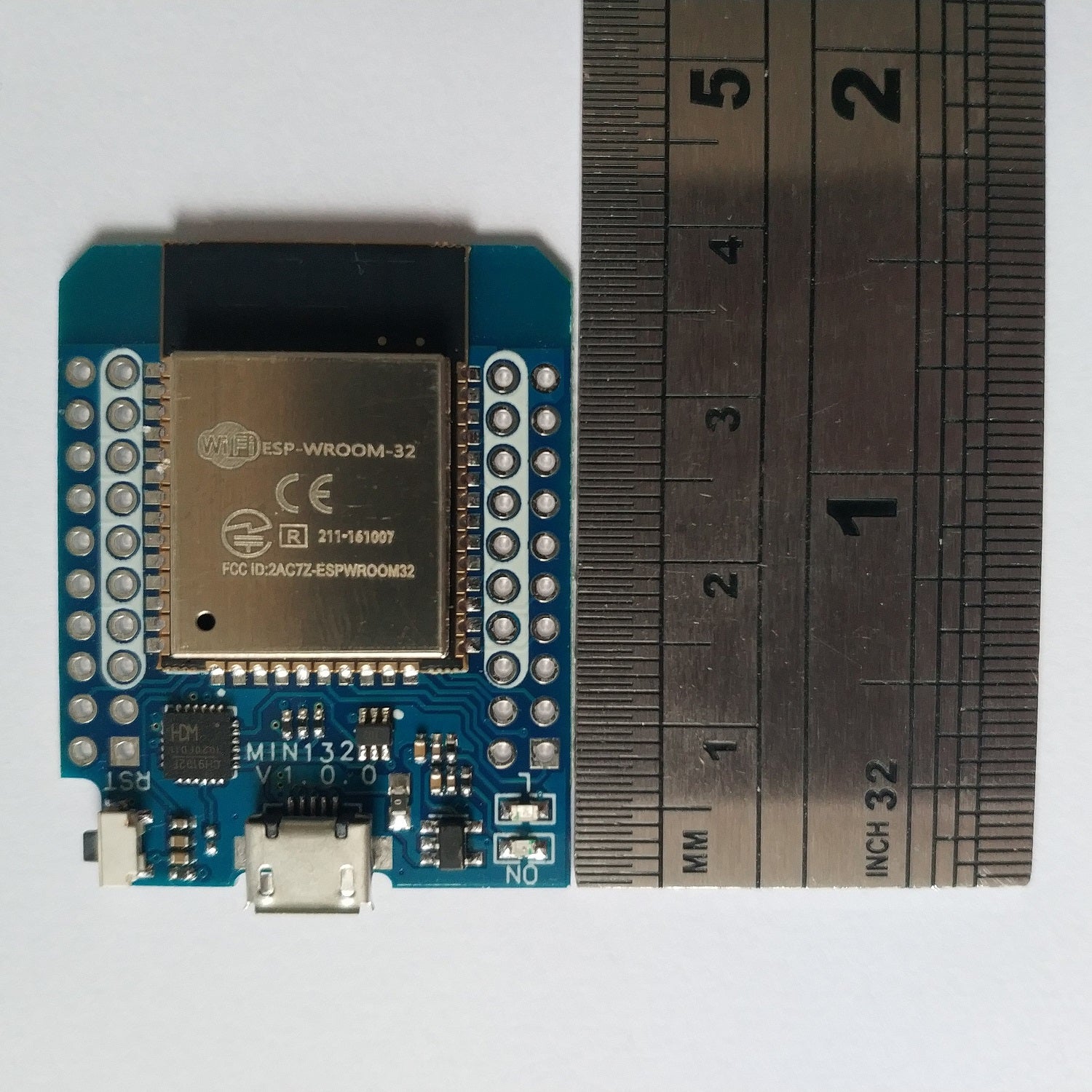

The brilliant ESP32 D1 Mini Single Board Computer!  This is tiny (39x31mm), yet has a full-on dual-core ESP32-WROOM-32 chip onboard (not the less powerful ESP8266).

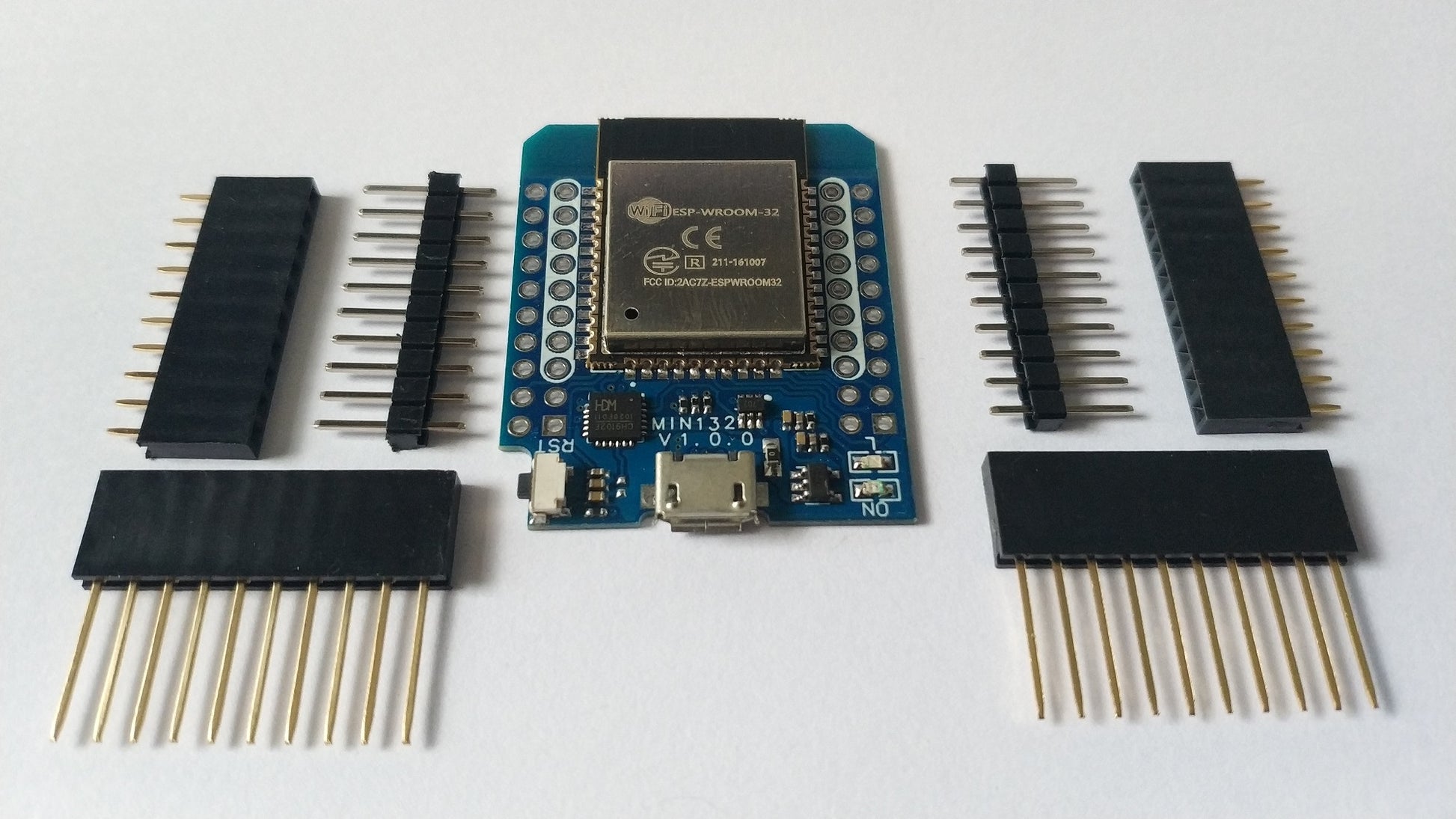

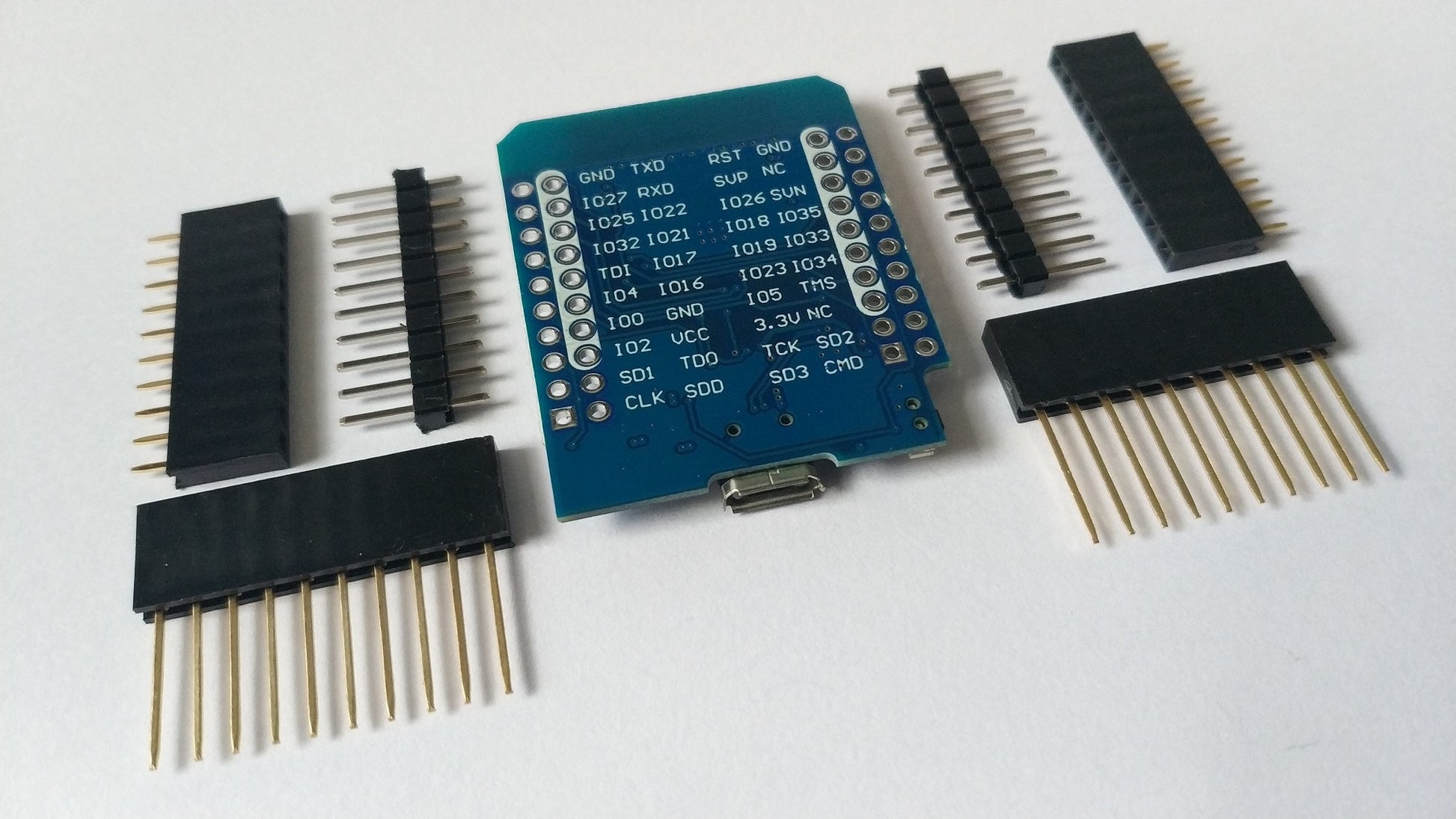

Comes with pins.  Lots of pins:

• 2x male (regular) Dupont pin strips.
• 2x female (socket) Dupont strips.
• 2x extra long Dupont strips with male and female sides.

These offer crazy amount of connectivity for a package so small and energy efficient.  Bluetooth - got it.  WiFi - got it.  Dual core 32bit processor - you can bet it's got it!

And coding against them?  No problem.  You can use the Arduino IDE with it (see links below for a tutorial).  Our preferred method is vscode via PlatformIO.  Just select WEMOS D1 MINI ESP32 as your board in PlatformIO and off you go!  In this way you can code against it as if it's an Arduino.  There's also the Espressif IoT Development Framework in there as an option if you install the Espressif Platform.

We use these on Windows 10 and Windows 11 PC's.  When plugged in, it's detected as a USB-Enhanced SERIAL CH9102 COM port, and just works :).

Some info on the board:

• Model: ESP32 D1 Mini
• PC Connector: Micro USB (cable not included)
• Bluetooth: v4.2, BR/EDR/BLE.
• WiFi: 802.11 b/g/n (802.11n up to 150 Mpbs)
• Antenna: on-board PCB antenna
• Supply voltage: 3.0v ~ 3.6v (VCC) or 5v USB supplied.
• Operating voltage: 3.3v (GPIO pins)
• Interfaces: UART, SPI, I2C, LED PWM, Motor PWN, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC.

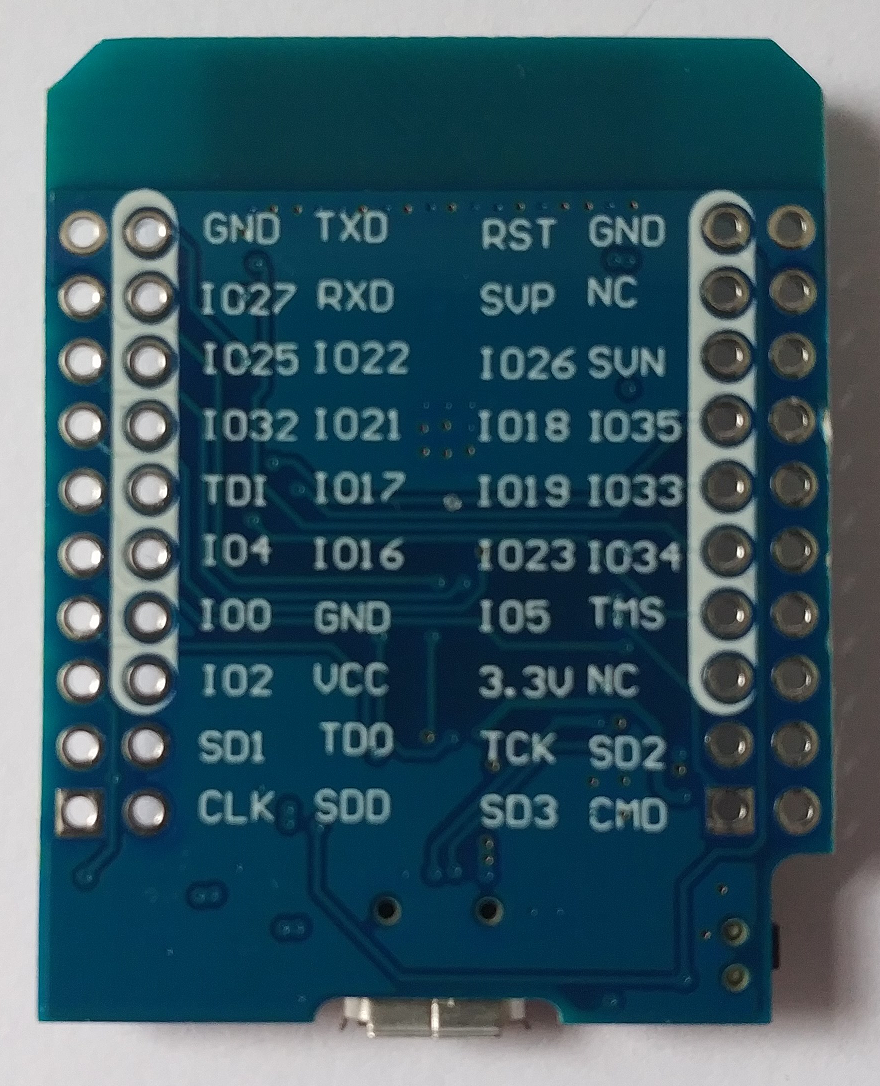

• Pins available: 40
• Operating Current: 20mA (idle), 100mA - 240mA (WiFi/Bluetooth), 10µA - 150µA (deep sleep), 5µA (RTC Timer Only)
• Operating Temperatire: -40c to 85c.
• Weight: ~5g (without pins)

Optional extra: an awesome case!

Tutorials:

• Using Arduino IDE with ESP32 boards


• ESP32 single board computer tutorials


• Featuring the older ESP8266 chipset, but compatible with this newer ESP32-WROOM-32 product


Datasheets

• ESP32-WROOM-32 datasheet


• ESP32 General datasheet

Just for fun:

• An experiment running an ESP32 in low power mode and getting 44 months off a battery

Tell me more about the case:

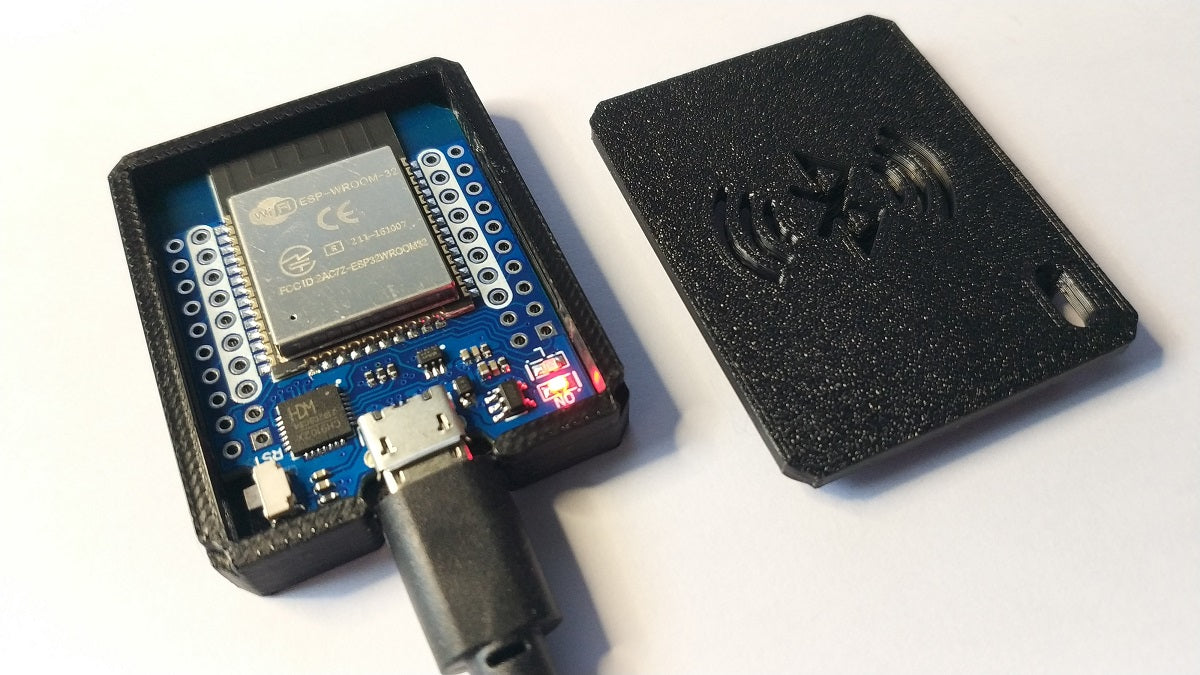

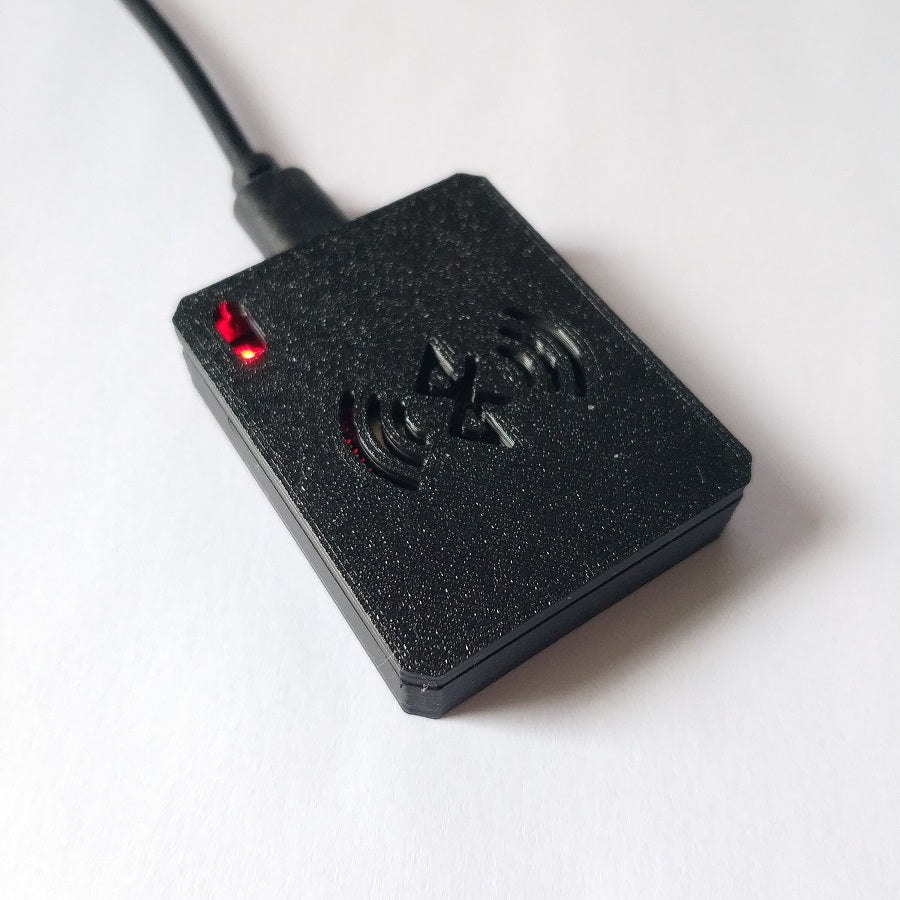

Hobby Stuff loves a good case, and this one is gorgeous!  It is manufactured in PETG, with external measurements of 44.5 x 35.8 x 9.9 mm.  It's a snug snap-fit with notches to pop it open once shut.

Hobby Stuff redesigned the source model to include vents so any heat can easily escape, which looks great!  There is also an access hole beside the reset button.  Our favorite part is the finish... it's almost sparkly and looks brilliant in our humble opinion!  Note that the pins are not available directly through the base/top of the case.  If that's important to you, give me us shout and we'll remodel it with slits along the base to expose them.

Also available in white, just drop us a message.

In usage, we recommend inserting the ESP32 by USB port first.  And when removing your snug-fitting ESP32 D1 Mini, please do not tug on any surface mounted components, as they can be delicate.

Attribution

Hobby Stuff used this model as a start point for the case and reworked it to add vents:
https://www.thingiverse.com/thing:4871082
